value errors such as trying to add up text values.
TODO: In newer versions of Excel, there seems also to be a #SPILL error.

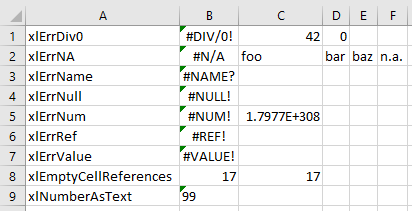

The following VBA code, when executed in Excel, creates some possible errors:
option explicit
sub main() ' {
createCellsWithErrors
dim r as long
for r = 1 to 9 ' {
checkIfCellContainsError r
next r ' }
activeSheet.usedRange.columns.autoFit
cells(11, 11).select
end sub ' }
sub createCellsWithErrors() ' {
' xlErrDiv0
' -----------------------------------------
cells(1, 3) = 42
cells(1, 4) = 0
cells(1, 2).formulaR1C1 = "= RC[1] / RC[2]"
' xlErrNA
' -----------------------------------------
cells(2, 3) = "foo"
cells(2, 4) = "bar"
cells(2, 5) = "baz"
cells(2, 6) = "n.a."
cells(2, 2).formulaR1C1 = "=match(RC[4],RC[1]:RC[3], 0)"
' xlErrName
' -----------------------------------------
cells(3, 2).formulaR1C1 = "= inexistingFunction()"
' xlErrNull
' -----------------------------------------
cells(4, 2).formulaR1C1 = "= sum(RC[1]:RC[2] RC[3]:RC[4])" ' Use intersect operator (space) on two ranges that have no cell in common
' cells(5, 1) = "xlErrNum"
cells(5, 3).formulaR1C1 = "= 17.9769313486231 * 1e307" ' Close to the maximum double precision floating-point value
cells(5, 2).formulaR1C1 = "= 17.9769313486232 * 1e307" ' Over the maximum double precision floating-point value
' xlErrRef
' -----------------------------------------
cells(6, 9) = "some value that is going to be deleted"
cells(6, 2).formulaR1C1 = "= RC9"
columns(9).delete
' xlErrValue
' -----------------------------------------
cells(7, 2).formulaR1C1 = "= ""foo"" + ""bar""" ' cannot add two stringsā¦
' xlEmptyCellReferences
' -----------------------------------------
cells(8, 3).value = "17"
cells(8, 2).formulaR1C1 = "= RC[1] + RC[2]" ' Some referenced cells in the formula are empty
' xlNumberAsText
' -----------------------------------------
cells(9, 2).value = "'99" ' Prepend number with apostrophe
end sub ' }
sub checkIfCellContainsError(r as long) ' {
dim cell as range : set cell = cells(r, 2)
dim cellVal as variant
cellVal = cell.value
dim errText as string
if cell.errors(xlEmptyCellReferences ).value then errText = "xlEmptyCellReferences"
if cell.errors(xlInconsistentFormula ).value then errText = "xlInconsistentFormula"
if cell.errors(xlInconsistentListFormula).value then errText = "xlInconsistentListFormula"
if cell.errors(xlListDataValidation ).value then errText = "xlListDataValidation"
if cell.errors(xlMisleadingFormat ).value then errText = "xlMisleadingFormat"
if cell.errors(xlNumberAsText ).value then errText = "xlNumberAsText"
if cell.errors(xlOmittedCells ).value then errText = "xlOmittedCells"
if cell.errors(xlTextDate ).value then errText = "xlTextDate"
if cell.errors(xlUnlockedFormulaCells ).value then errText = "xlUnlockedFormulaCells"
if cell.errors(xlEvaluateToError ).value then ' {
errText = errText & ", " & "xlEvaluateToError"
select case cellVal
case cvErr(xlErrDiv0 ): errText = "xlErrDiv0"
case cvErr(xlErrNA ): errText = "xlErrNA"
case cvErr(xlErrName ): errText = "xlErrName"
case cvErr(xlErrNull ): errText = "xlErrNull"
case cvErr(xlErrNum ): errText = "xlErrNum"
case cvErr(xlErrRef ): errText = "xlErrRef"
case cvErr(xlErrValue): errText = "xlErrValue"
case else : errText = "?"
end select
if varType(cellVal) <> vbError then ' {
msgBox "Unepxected: varType(cellVal) <> vbError, but xlEvaluateToError"
end if ' }
end if ' }
cells(r, 1) = errText
end sub ' }
