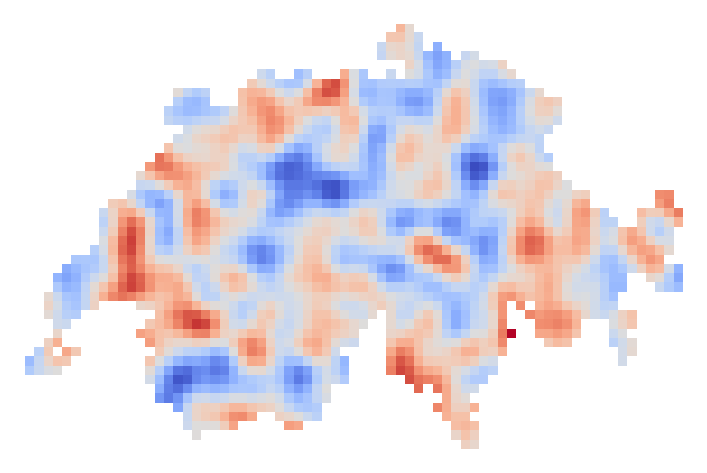

Python matplotlib example: Heat map of Switzerland

Source code

import matplotlib.pyplot as plt
import numpy             as np
from   scipy.ndimage import gaussian_filter


gridStr = '''
                                        xx
                                       xxxx
                                      xxxxx x
                                      xxxxxxxx xx
                                         xxxxxxxxxxx
                         xx  xx   xxx  x xxxxxxxxxxxx
                        xxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
                xxxx   xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
                xxxx   xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
               xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
               xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
                 xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
                xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
               xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
              xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
             xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
            xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
            xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
           xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx       xx
         xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx       xx
        xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx   xxxxx
        xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx  xxxxx
        xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
        xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
       xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
     xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
    xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
   xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx  xxxx
   xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx   xxx
  xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
  xxxxxx    xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx x xxxxxxxxx
  xxxx        xxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxx  xxxxxxxxxxxx
   xx        xxxxxxxxxxxxxxxxxxxxxxxx  xxxxxxxxxxxxx   xxxxx   xxx
   x        xxxxxxxxxxxxxxxxxxxxxxxx   xxxxxxxxxxxxxx  xxxxx   xx
  xx         xxxxxxxxxxxxxxxxxxxxxxx   xxxxxxxxxxxxx    xxx    xxx
 xx xx        xxxxxxxxxxxxxxxxxxxx     xxxxxxxxxxxxx            xx
xxxxx        xxxxxxxxxxxxxxxxxxxxxx    xxxxxxxxxxxx             x
xxxx         xxxxxxxxxxxxxxxxxxxxxx    xxxxxxxxxxxx
             xxxxxxxxxxxxxxxxxxxxxx      xxxxxxxxx
              xxxxxxxxxxxxxxxxxxx         x xxxxx
              xxxxxxxxxxxxxxxxxxx            xxx
                xxxxxxxxxxxxxxxx            xxxxx
                 xxxxxxxx  xxxxx             xxx
                 xxxxxx     xx                xxx
                  x                           xxx
                                               xx                      '''


lines = gridStr.splitlines()[1:] # Remove first line

grid = [ [ False if cell==' ' else True  for cell in line ] for line in lines]

height = len(grid   )
width  = len(grid[0])

np.random.seed(2808)
values = np.random.rand(height, width)
values = gaussian_filter(values, sigma=1.4)

# print(f'Size: {width}x{height}')

for  x in range(width):
 for y in range(height):

     if not grid[y][x]:
        values[y, x] = None

plt.imshow(values, cmap = 'coolwarm')
plt.axis('off')

fig = plt.gcf() # gcf = get current figure

fig.subplots_adjust(
    top    = 0.95,
    bottom = 0.05,
    left   = 0.0,
    right  = 1.0
#   hspace=0.0,
#   wspace=0.0
)

plt.show()
