VBA source code
This is the
VBA code to highlight the differences.
option explicit
sub diff_ranges( _
ids_A as range, _
data_A as range, _
ids_B as range, _
data_B as range )
dim fc as formatCondition
dim c as string : c = ","
'
' Formulae can be shortened by setting paramter 'external' to false, but then, they
' will only work if the data being compared is on same sheet.
' For convenience, I always set this value to true, although it probably
' would be more elegant if 'external' is only used if so required.
'
dim multipleSheets as boolean : multipleSheets = true
'
' Highlight keys in ids_A which are not found in ids_B and...
'
set fc = ids_A.formatConditions.add(xlExpression, formula1 := "=ISNA(MATCH(" & ids_A.cells(1,1).address(rowAbsolute := false, external := multipleSheets) & c & ids_B.address(external := multipleSheets) & c & "0))")
fc.interior.color = rgb(255, 40, 60)
'
' keys in ids_B which are not found in ids_A:
'
set fc = ids_B.formatConditions.add(xlExpression, formula1 := "=ISNA(MATCH(" & ids_B.cells(1,1).address(rowAbsolute := false, external := multipleSheets) & c & ids_A.address(external := multipleSheets) & c & "0))")
fc.interior.color = rgb(255, 40, 60)
dim formula as string
formula = "=" & data_A.cells(1,1).address(rowAbsolute := false, columnAbsolute := false, external := multipleSheets) & _
" <> offset(" & data_B.cells(1,1).address(rowAbsolute := true , columnAbsolute := false, external := multipleSheets) & c & _
"match(" & ids_A.cells(1,1).address(rowAbsolute := false, external := multipleSheets) & c & ids_B.address(external := multipleSheets) & ", 0)-1,0)"
set fc = data_A.formatConditions.add(xlExpression, formula1 := formula)
fc.interior.color = rgb(255, 217, 102)
formula = "=" & data_B.cells(1,1).address(rowAbsolute := false, columnAbsolute := false, external := multipleSheets) & _
" <> offset(" & data_A.cells(1,1).address(rowAbsolute := true , columnAbsolute := false, external := multipleSheets) & c & _
"match(" & ids_B.cells(1,1).address(rowAbsolute := false, external := multipleSheets) & c & ids_A.address(external := multipleSheets) & ", 0)-1,0)"
set fc = data_B.formatConditions.add(xlExpression, formula1 := formula)
fc.interior.color = rgb(255, 217, 102)
end sub

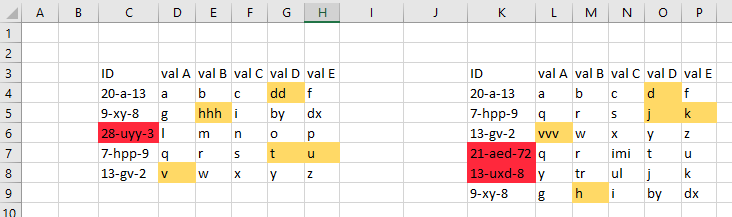

Test data
Here is a piece of code that creates the test data for the functionality:
option explicit
sub test_diff_ranges(optional multiple_worksheets as boolean = false) ' {
dim sh_1 as worksheet
dim sh_2 as worksheet
set sh_1 = worksheets.add
if multiple_worksheets then
set sh_2 = worksheets.add
else
set sh_2 = sh_1
end if
with sh_1
.range(.cells(3, 3), .cells(3, 8)).value = array("ID" , "val A", "val B", "val C", "val D", "val E")
.range(.cells(4, 3), .cells(4, 8)).value = array("20-a-13" , "a" , "b" , "c" , "dd" , "f" )
.range(.cells(5, 3), .cells(5, 8)).value = array("9-xy-8" , "g" , "hhh" , "i" , "by" , "dx" )
.range(.cells(6, 3), .cells(6, 8)).value = array("28-uyy-3" , "l" , "m" , "n" , "o" , "p" )
.range(.cells(7, 3), .cells(7, 8)).value = array("7-hpp-9" , "q" , "r" , "s" , "t" , "u" )
.range(.cells(8, 3), .cells(8, 8)).value = array("13-gv-2" , "v" , "w" , "x" , "y" , "z" )
end with
with sh_2
.range(.cells(3,11), .cells(3,16)).value = array("ID" , "val A", "val B", "val C", "val D", "val E")
.range(.cells(4,11), .cells(4,16)).value = array("20-a-13" , "a" , "b" , "c" , "d" , "f" )
.range(.cells(5,11), .cells(5,16)).value = array("7-hpp-9" , "q" , "r" , "s" , "j" , "k" )
.range(.cells(6,11), .cells(6,16)).value = array("13-gv-2" , "vvv" , "w" , "x" , "y" , "z" )
.range(.cells(7,11), .cells(7,16)).value = array("21-aed-72", "q" , "r" , "imi" , "t" , "u" )
.range(.cells(8,11), .cells(8,16)).value = array("13-uxd-8" , "y" , "tr" , "ul" , "j" , "k" )
.range(.cells(9,11), .cells(9,16)).value = array("9-xy-8" , "g" , "h" , "i" , "by" , "dx" )
end with
diff_ranges _
sh_1.range(sh_1.cells(4, 3), sh_1.cells(8, 3)), _
sh_1.range(sh_1.cells(4, 4), sh_1.cells(8, 8)), _
sh_2.range(sh_2.cells(4, 11), sh_2.cells(9,11)), _
sh_2.range(sh_2.cells(4, 12), sh_2.cells(9,16))
end sub ' }
