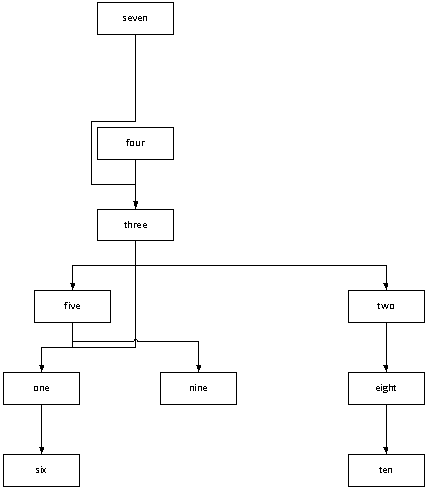

The following is a attempt to create a dependency chart. With Graphviz this is a breeze, the result of my attempt however is rather dissapointing, I feel the result could look much nicer.
Apparently, in order to create nicer drawings, the behaviour of layout should be changed by setting and modifying formulas of cells in the Page Layout and Shape Layout Shape Sheet sections of the particular page.
Since I haven't done that, this might explain why the result is not that beautiful.
option explicit
dim pag as page
sub main()
dim doc as document
set doc = activeDocument
set pag = doc.pages(1)
dim nodes(1 to 10) as shape
dim edges(1 to 10) as shape
set nodes( 1) = createNode("one" )
set nodes( 2) = createNode("two" )
set nodes( 3) = createNode("three")
set nodes( 4) = createNode("four" )
set nodes( 5) = createNode("five" )
set nodes( 6) = createNode("six" )
set nodes( 7) = createNode("seven")
set nodes( 8) = createNode("eight")
set nodes( 9) = createNode("nine" )
set nodes(10) = createNode("ten" )
set edges( 1) = createEdge(nodes( 3), nodes( 5))
set edges( 2) = createEdge(nodes( 3), nodes( 1))
set edges( 3) = createEdge(nodes( 4), nodes( 3))
set edges( 4) = createEdge(nodes( 2), nodes( 8))
set edges( 5) = createEdge(nodes( 3), nodes( 2))
set edges( 6) = createEdge(nodes( 7), nodes( 3))
set edges( 7) = createEdge(nodes( 5), nodes( 1))
set edges( 8) = createEdge(nodes( 5), nodes( 9))
set edges( 9) = createEdge(nodes( 1), nodes( 6))
set edges(10) = createEdge(nodes( 8), nodes(10))
'
' Automatically layout shapes on the page:
'
pag.layout
activeWindow.showGrid = false
end sub
function createNode(txt as string) as shape ' {
set createNode = pag.drawRectangle(0, 0, 1.2, 0.5)
createNode.text = txt
end function ' }
function createEdge(nodeFrom as shape, nodeTo as shape) as shape ' {
nodeFrom.autoConnect nodeTo, visAutoConnectDirNone, createEdge
set createEdge = pag.shapes(pag.shapes.count)
' Add arrow
createEdge.cells("EndArrow") = 13
end function ' }
