Excel VBA example: create a lissajous chart
option explicit
const nofPoints = 25
const pi = 3.141592
sub main() ' {
with activeSheet ' {
.cells( 1, 1) = "t"
.cells( 1, 2) = "x"
.cells( 1, 3) = "y"
.cells(18, 5) = "a" : .cells(18, 6) = 3
.cells(19, 5) = "b" : .cells(19, 6) = 4
.range( .cells(2,1), .cells(nofPoints+1,1) ).formulaR1C1 = "= 2 * " & pi & " * (row()-2) / " & (nofPoints-1)
.range( .cells(2,2), .cells(nofPoints+1,2) ).formulaR1C1 = "= sin( rc[-1] * r18c6 )"
.range( .cells(2,3), .cells(nofPoints+1,3) ).formulaR1C1 = "= sin( rc[-2] * r19c6 )"
dim shp as shape
set shp = .shapes.addChart2(xlChartType := xlXYScatterSmoothNoMarkers)
dim cht as chart
set cht = shp.chart
cht.setSourceData source := .range(.cells(2,2), .cells(nofPoints+1,3))
with .range(.cells(2,4), cells(16,11) ) ' {
shp.width = .width
shp.height = .height
shp.top = .top
shp.left = .left
end with ' }
cht.hasTitle = true

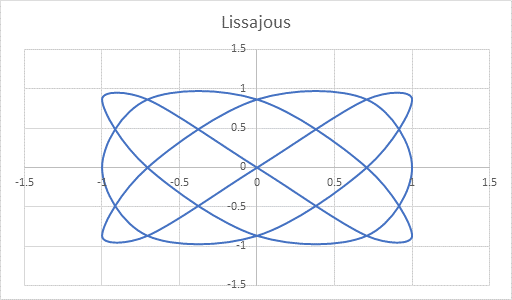

cht.chartTitle.text = "Lissajous"
cht.legend.delete
cht.export _
fileName := activeWorkbook.path & "\img\lissajous.png", _
filterName := "png"
end with ' }
end sub ' }
